Spiral-plate Heat Exchanger 304/316L 0.5-10 m³ ASME Design
| Herkunftsort | Jiangsu, China |
|---|---|
| Markenname | sureway |
| Min Bestellmenge | 1 |
| Preis | $1,000 |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Dimension | 2000 1000 2500 3000 1200 3000 | Volumen | 0,5-10 m³ |
|---|---|---|---|
| Inneres Material | 304/316/Titanylow/Hastelloy -Legierung | Außenmaterial | 304, Aluminiumplatte, Sprühbeschichtung mit Kohlenstoffstahl |
| Konstruktionsdruck | 1 bis 10 MPa | Arbeitstemperatur | -196 ℃ - 300 ℃ |
| Gewicht | 1000 kg | Anzahl der Pipelines | Singlechannel/DualChannel/Triple Channel |
| Anzahl der Spiralwendungen | 5-50 Kreis | Hauptmaterial | 304/316L/Ta2Titanium/Hastelloy Alloyc276/2250 -Phase -Stahl |
| Belastungstests | 1,25 -fach Ausleitungsdruck Wasserdruck Test/Luftdichtungstest | Flanschstandard | ANSI/PN/DIN/JIS |
| Designstandard | Asme | Betriebstemperatur | -196 ℃ - 300 ℃ |
| Kernkomponenten | Druckbehälter | ||
| Hervorheben | 316L Spiral plate Heat Exchanger,ASME Design Spiral plate Heat Exchanger,Spiral-plate Heat Exchanger |
||
Produkt-Beschreibung

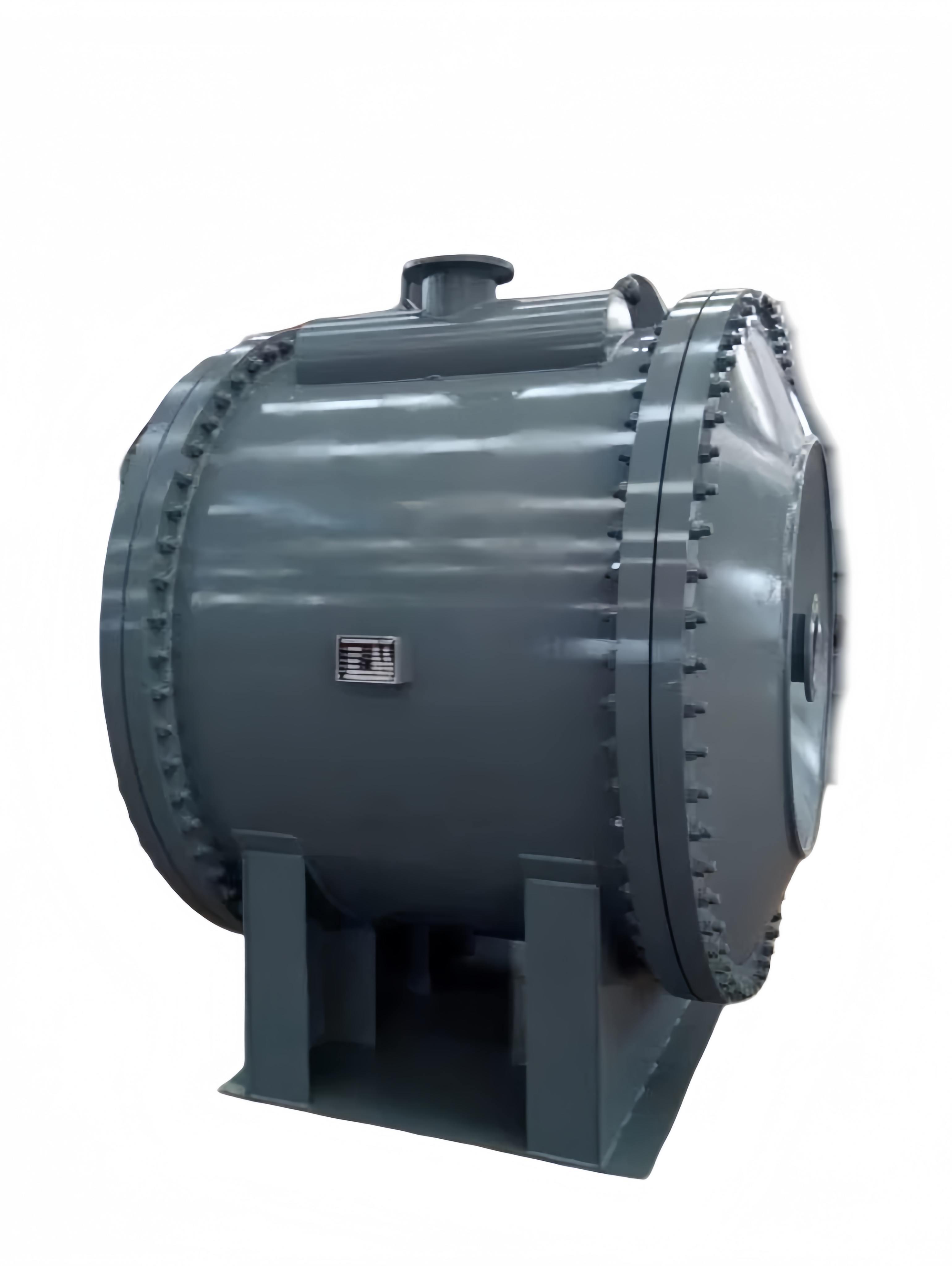

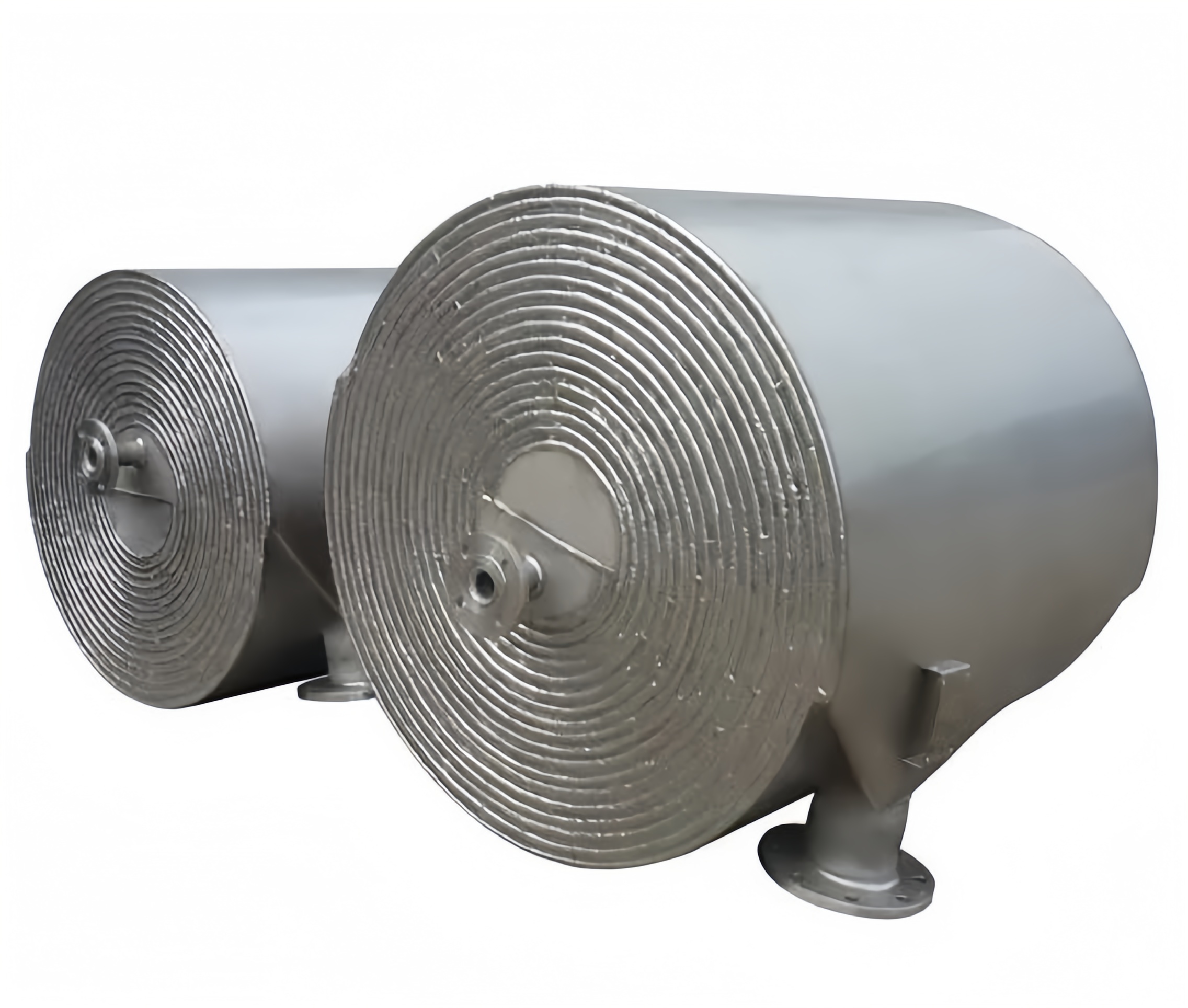

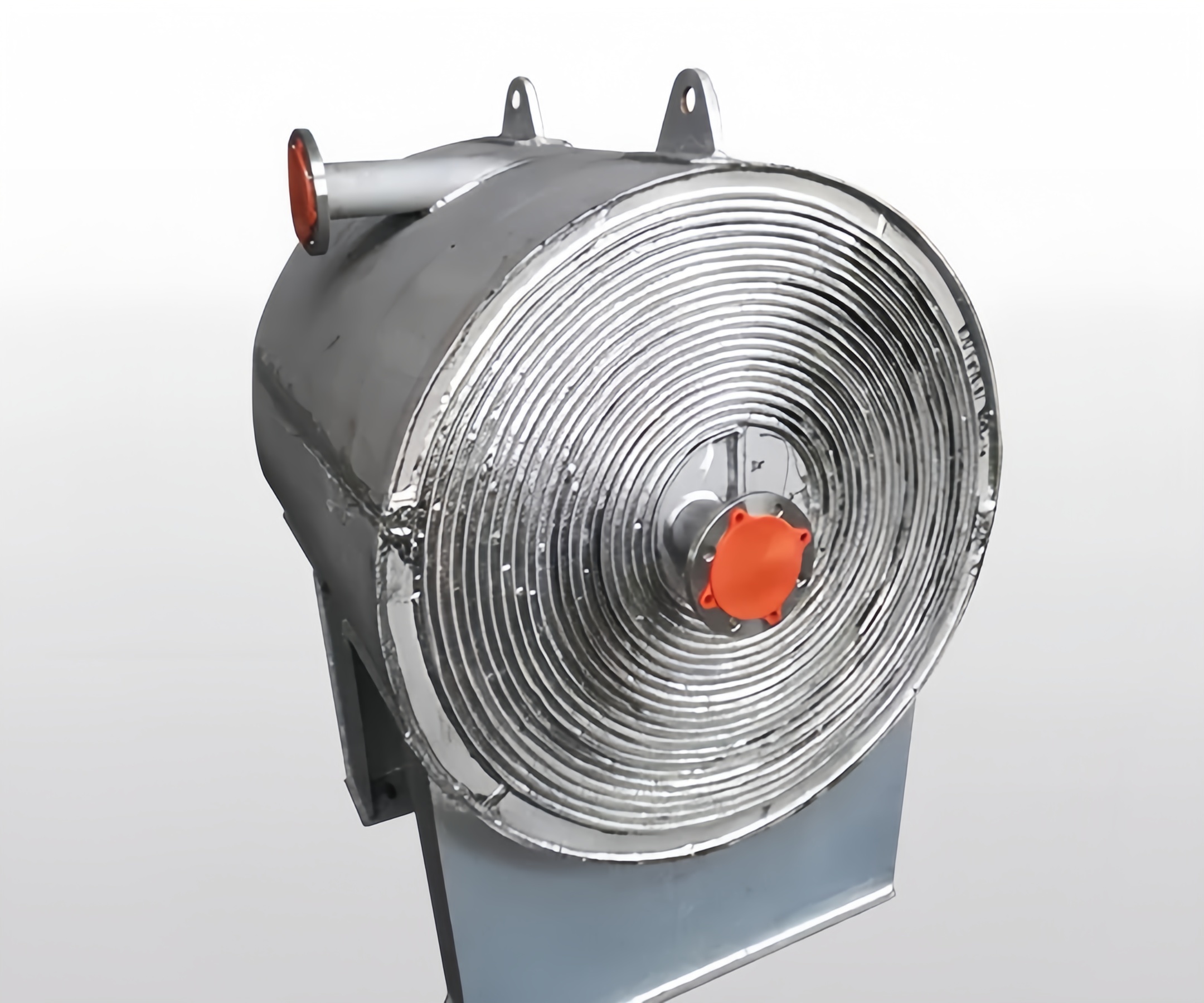

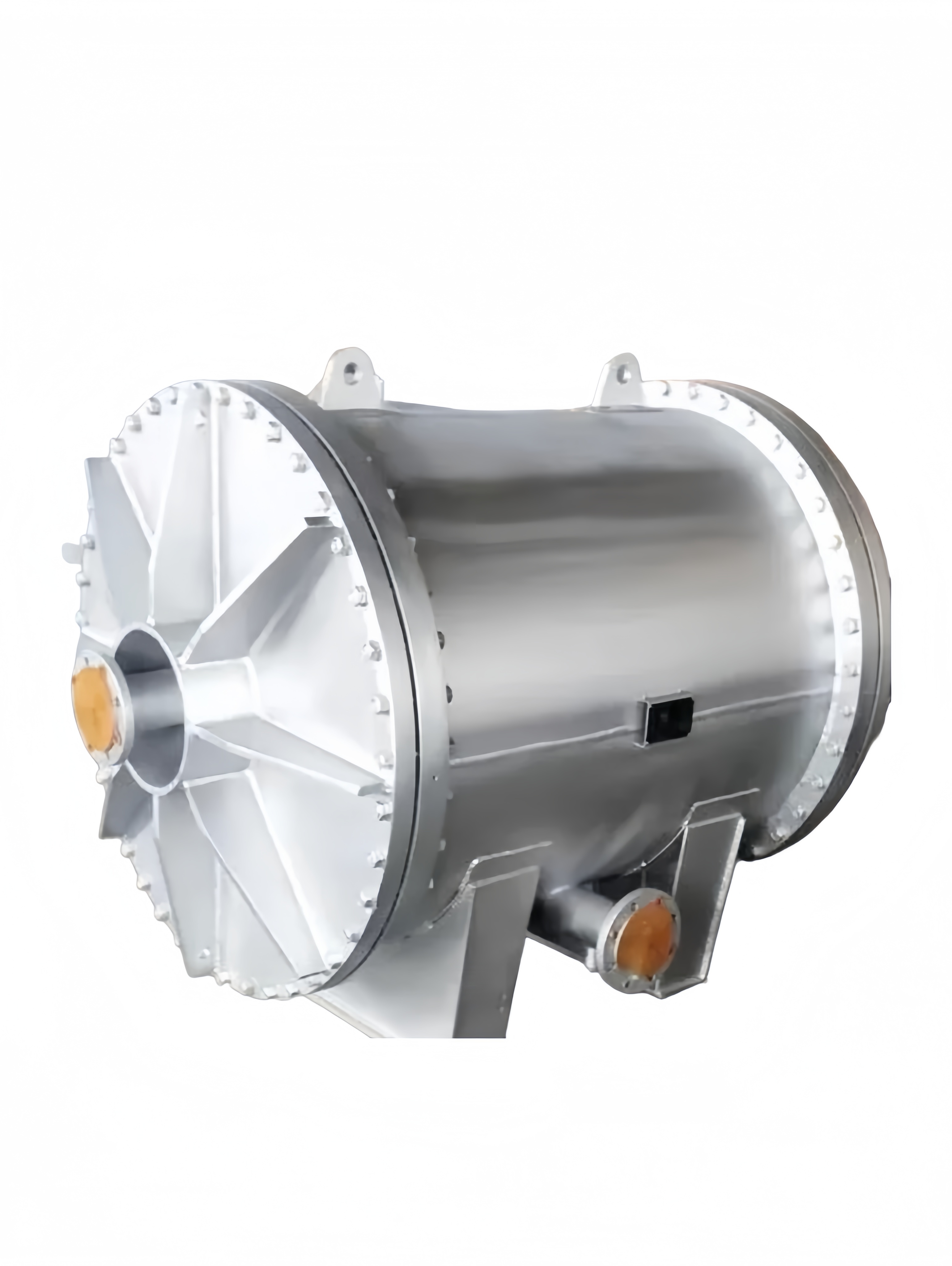

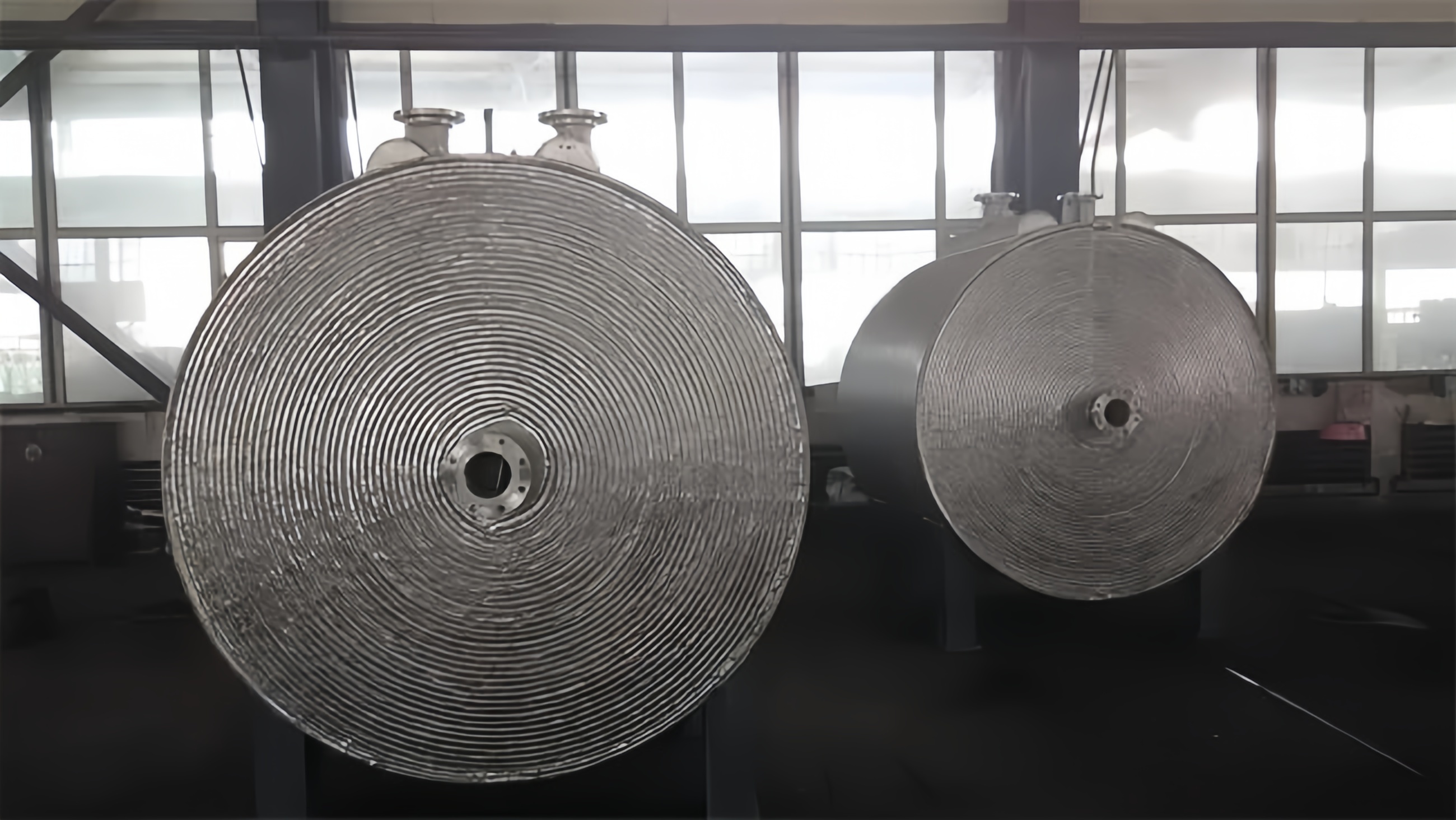

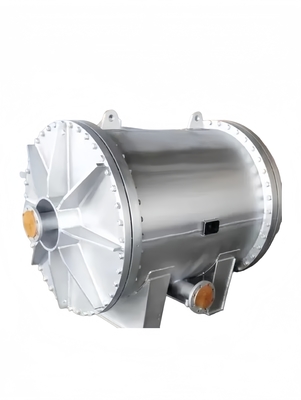

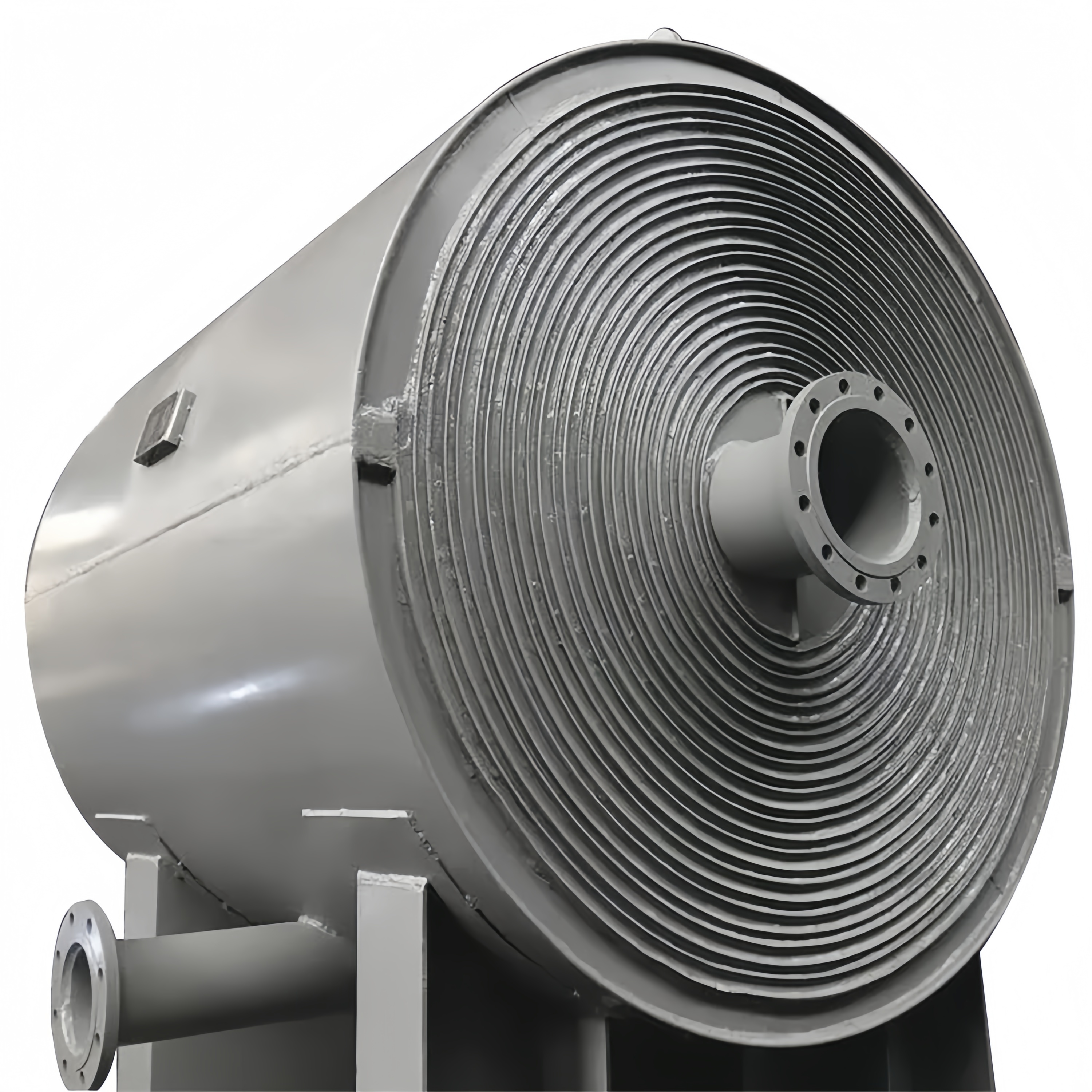

Spiral-plate Heat Exchanger
Product Specifications
| Attribute | Value |
|---|---|
| Design Pressure (MPa) | 1-10 MPa |
| Working Temperature | -196℃ to 300℃ |
| Warranty | 1 Year |
| Weight | 1000 KG |
| Volume | 0.5-10 m³ |
| Inner Material | 304/316/Titanium alloy/Hastelloy alloy |
| Outer Material | 304, Aluminum plate, Carbon steel spray coating |
| Design Standard | ASME |
| Flange Standard | ANSI/PN/DIN/JIS |
Key Features
- Customizable Design: Multiple material options including 304/316L, titanium alloy, and Hastelloy alloy
- Advanced Sealing Technology: Welding sealing and flange connection options
- Wide Temperature Range: Operates from -196℃ to 300℃ for various environments
- Reliable Performance: Backed by 1-year warranty and comprehensive testing
- Flexible Installation: Customizable dimensions to fit different spaces
- Multiple Connection Options: Single, dual, and triple-channel piping configurations
- Enhanced Flow Efficiency: Spiral threaded pipe design for optimal performance
- Versatile Pressure Ratings: 0.1-10MPa design pressure options
- Durable Construction: Corrosion-resistant materials for long service life
Technical Support
Our experienced engineering team provides comprehensive support including custom designs, technical consultations, and complete project solutions tailored to your specific requirements.
Company Overview
Shanghai Sureway Industrial Company Limited specializes in chemical engineering solutions, offering:
- Advanced production technology development and transfer
- Complete equipment supply and installation
- Cutting-edge gas liquefaction and separation technology
- Patented carbon dioxide production technology
- 20+ years experience in sulfur chemical production
- Customized solutions for diverse industrial applications
Frequently Asked Questions
Who are we?
Established in 2008 and based in Shanghai, China, we serve global markets with a team of 51-100 professionals specializing in industrial equipment and chemical plants.
How do we guarantee quality?
Pre-production samples and final inspection before shipment ensure consistent product quality.
What products do we offer?
LNG plants, CO2 plants, chemical equipment, industrial automation systems, and complete chemical plants.
Why choose us?
We provide comprehensive technical support and specialized equipment for gas processing, chemical production, and industrial automation applications.
